ID: 3778
Omschrijving
Optionele iOS of Android telefoon/tablet vereist om SatPal™ app in iTunes store of SatPal™ app in Google Play store te kunnen gebruiken bij deze satellietmeter, satfinder en UniCABLE II programmer. Ingebouwde accu en bezit Bluetooth verbinding.

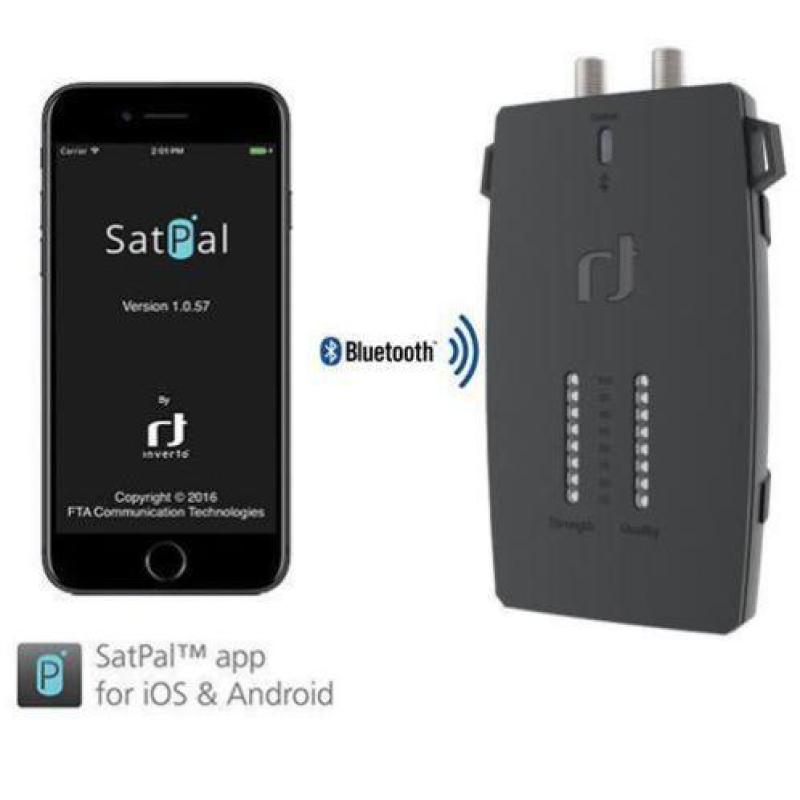

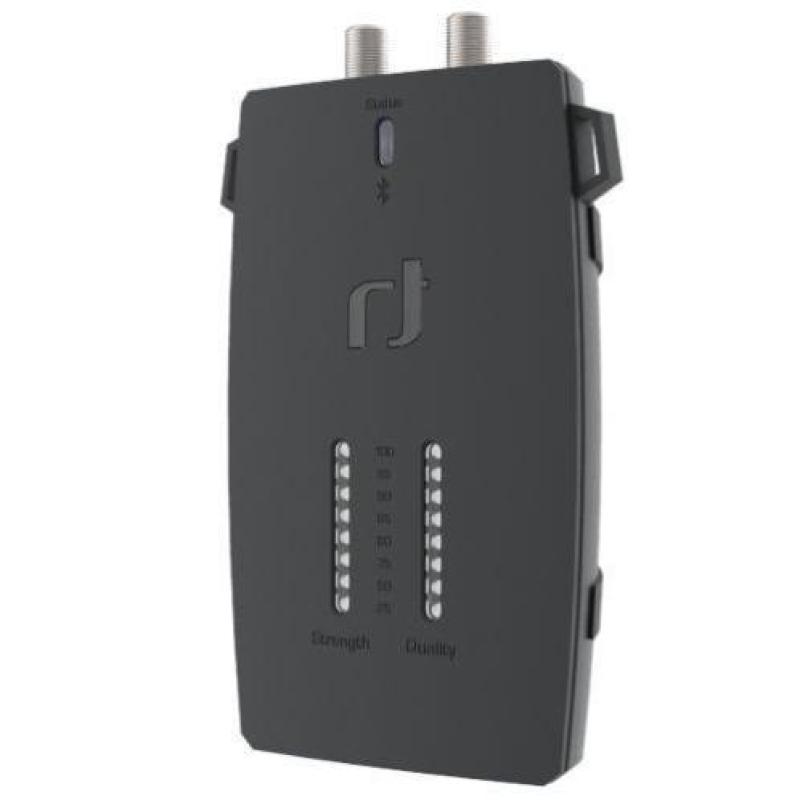

Inverto IDLU-SPAL03 SatPal meter
Optionele iOS of Android telefoon/tablet vereist om SatPal™ app in iTunes store of SatPal™ app in Google Play store te kunnen gebruiken bij deze satellietmeter, satfinder en UniCABLE II programmer. Ingebouwde accu en bezit Bluetooth verbinding.
Bekijk de video en zie alles van de vele mogelijkheden:

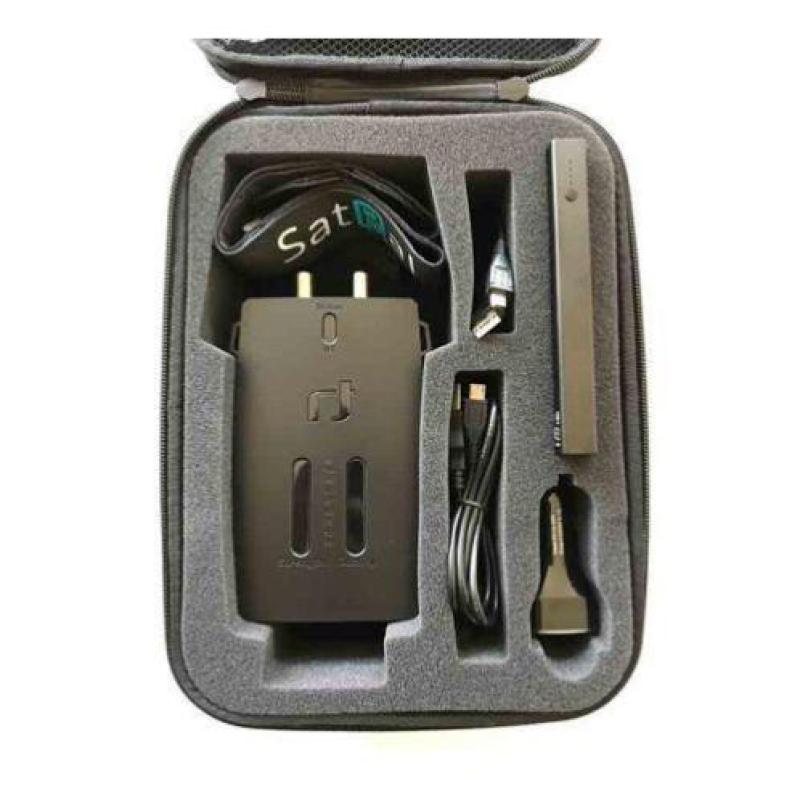

SatPal™ package content:
1x SatPal™ Controller
1x Portable battery

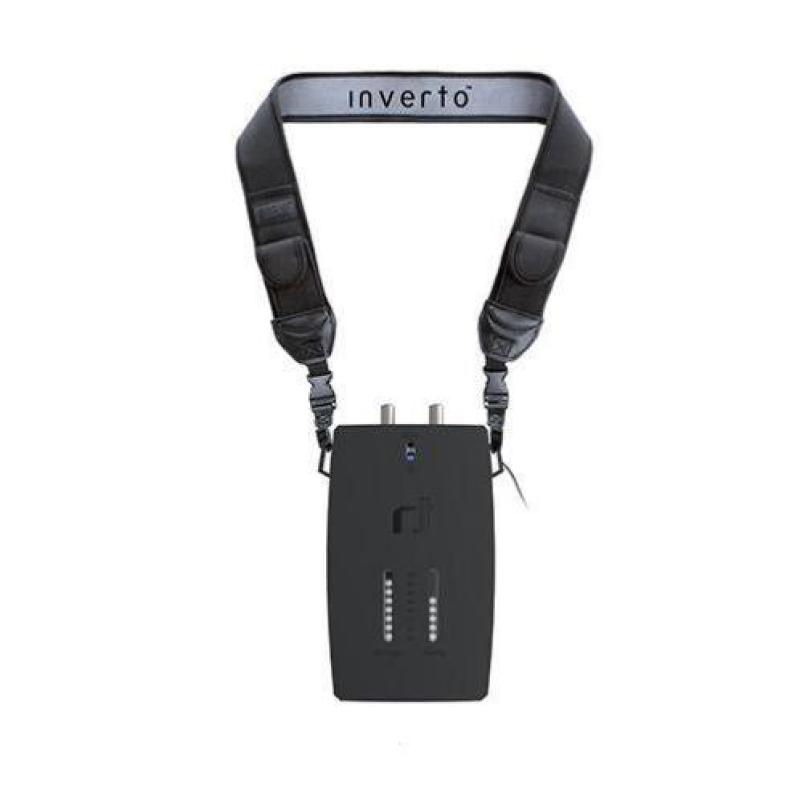

1x Neck strap
1x Car charger
2x Micro USB cables (data/power)
3x Battery holding bands
1x Quick guide
1x Carrying case
Technical specification
Frequency range
Satellite (LNB/Multiswitch and receiver ports)
950 MHz ~ 2150 MHz
Bluetooth
2.4 GHz
Interfaces
LNB/Multiswitch 1x Satellite IF, 13 V / 18 V DC out, 0 kHz / 22 kHz, F-type
Receiver
1x Satellite IF loop-through out, 13 V / 18 V DC in, F-type
PC (data)
1x PC data communication, micro USB
Bluetooth (wireless data)
1x Bluetooth low energy (IEE 802.15.1 BT4.0)
DC input
1x DC input, micro USB
Loop-through loss (Satellite) 1 dB max.
LNB/Multiswitch control protocols
DiSEqC™ 2.0, EN50494 (Unicable/SatCR), EN50607 (Unicable II™/dCSS)
Display and keys Status LED
Bluetooth LED
Power LED
Function button
Satellite signal strength bar (0% ~ 100%)
Satellite signal quality bar (0% ~ 100%)
Power supply
DC input
5 V ~ 6 V DC / 13 W max. (DC in, micro USB)
10 V ~ 20 V DC / 13 W max. (IF loop-through, F-type)
SatPal™ Controller
(without power supply to LNB/Multiswitch)
5 V DC, 350 mA (can be powered over the USB data interface)
Power supply to LNB/Multiswitch
14 V ~18 V, 400 mA max.
Operating temperature
0 °C ~ +45 °C
Dimensions
150 mm x 100 mm x 30 mm (w x d x h)
Certificates
Low Voltage Directive (2014/35/EU)
Electromagnetic Compatibility Directive (2014/30/EU)
Eco-Design Directive (2009/125/EC)
Radio Equipment Directive (2014/53/EU)
Logistical info
Packaging dimensions (W x D x H): 8.5 cm x 22 cm x 28.5 cm
Packaging weight:0.99 Kg
