\"Axas HIS 4K Combo E2 Linux H.265 HEVC 2160p DVB-S2/DVB-C/T2 Receiver\"

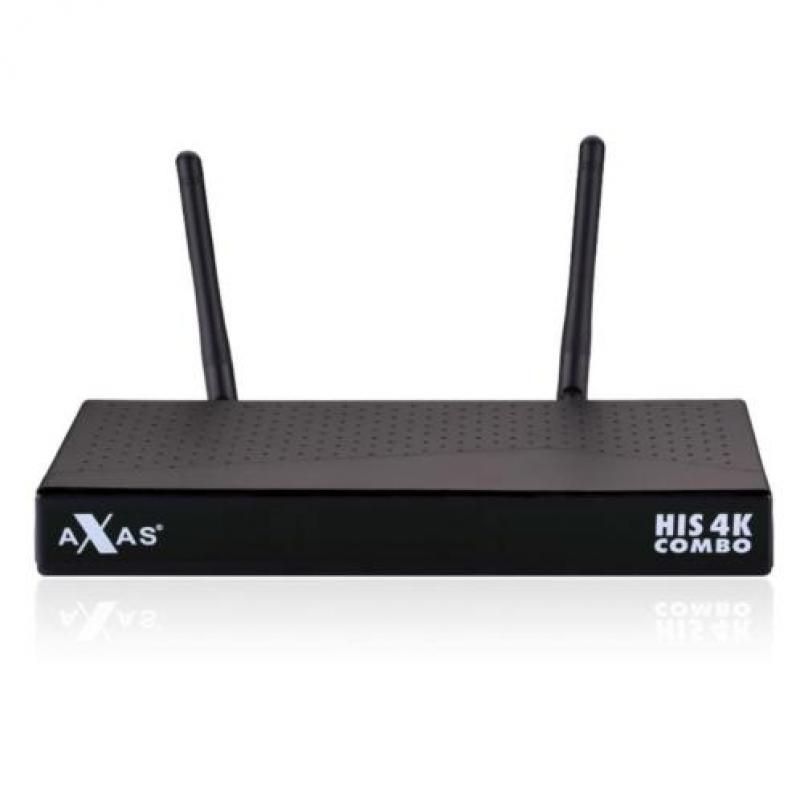

The Axas HIS 4K Combo Receiver is a low-cost Linux E2 receiver for playing back your 4K content and receiving your TV signals. For this, the 4K receiver from Axas has a DVB-S2 tuner and a DVB-C / T2 tuner. Under the hood are an ARM Cortex A53 Quad Core processor, a high-performance multi-core Mali graphics processor, 1 GB DDR4 Ram and 8 GB eMMC flash memory. This brings the Axas HIS 4K Combo Receiver to 15,000 DMIPS.
Axas HIS 4K Combo - Cost-effective 4K receiver with Linux E2 operating systemWith the Axas HIS 4K combo receiver, you benefit from the popular and popular Linux Enigma2 (E2) operating system. Within Enigma2 you have additional plug-ins ready to customize the interface to your liking. When it comes to interfaces and connections, the Axas HIS 4K Combo Receiver is also well positioned. He brings all current standards such as an HDMI port, an AV port, 2 USB 2.0 and a USB 3.0 port u.v.m. by factory with.
Specifications Axas HIS 4K Combo:
- E2 Linux operating system
- 1x DVB-S2 Sat tuner
- 1x DVB-C / T2 tuner
- ARM A53 quad core processor
- HISilicon 3798MV200 chip
- 4x 1600 Mhz
- 15,000 DMIPS
- 8 GB NAND eMMC Flash Memory
- 1 GB of DDR4 SDRAM memory
- WIFI built-in IEEE 802.11b / g / n / ac, 300Mbps
- 4 digit 7 segment display
- Media player function
- Downloadable plugins
- Support of 4K UHD 2160p
- MPEG2 / HEVC 264 and HEVC 265 hardware decoding
- HDR support
- EPG support
- Manual and automatic search function
- DiSEqC 1.0 / 1.1 / 1.2, USALS support
- Video format: 16: 9, 4: 3, Letterbox, Pan & Scan
- Power switch
- Power consumption in standby mode: below 0.5W
- OpenATV, OpenNFR, OpenHDF Images
- Video resolution in 576i / 576p / 720p / 1080i / 1080p / 2160p
- External 12V power supply
- Dimensions: 195mm X 115mm X 20mm

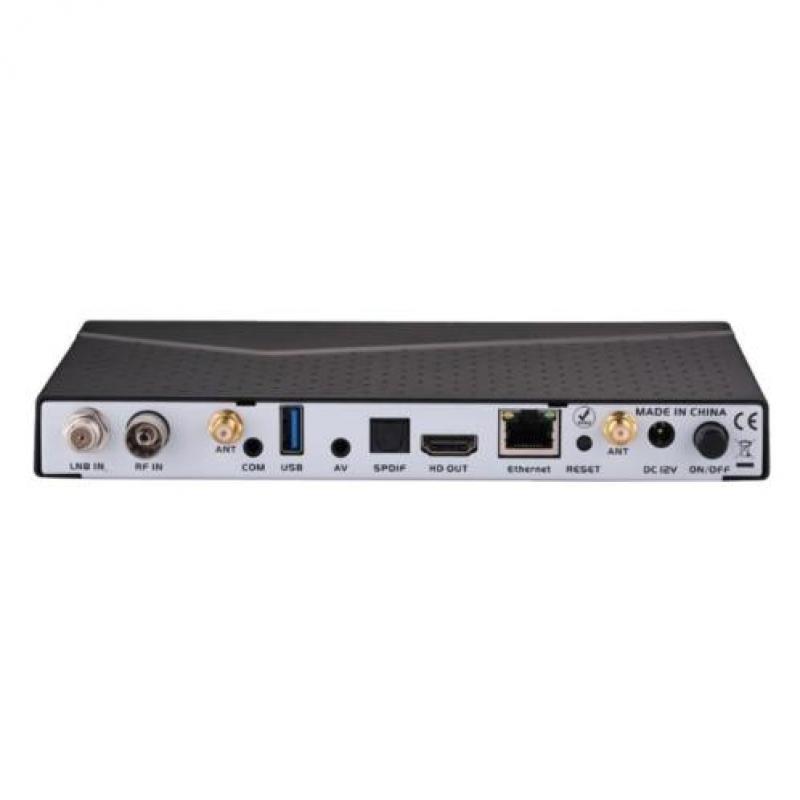

Connections & interfaces:
1x LNB In
1x RF In
1x CA card reader
1x USB 3.0
2x USB 2.0
1x COM port (RS232)
1x microSD slot
1x AV socket
1x S / PDIF Optical
1x HDMI 2.0a, HDCP 2.2, HDCP1.4
1x RJ-45 LAN jack 10/100 Mbps
2x 2.5 GHz / 5.8 GHz dual band antenna
1x 12 V, 2A power connection
2x LED indicator
Delivery:
1x Axas HIS 4K Combo Receiver
1x antenna pair
1x HDMI cable
1x AV cable
1x 12V power supply
1x remote control
1x user manual
